H13 Heat Treatment Guide

H13 Tool Steel Heat Treatment Overview

H13 is usually supplied in the annealed condition for machining, then hardened and tempered to the final working hardness.

Step-by-Step: How to Heat Treat H13 Tool Steel

1. Annealing H13 Tool Steel Before Machining

H13 is normally supplied in the annealed condition because this is the most practical state for machining and rough shaping. A proper anneal produces a spheroidized carbide structure, softens the steel, and reduces internal stress from prior processing.

A typical annealing range is 845 to 900°C (1550 to 1650°F). Some practices also cite 871°C (1600°F), with holding time based on section thickness. After soaking, H13 should be cooled very slowly in the furnace, typically at about 14 to 15°C per hour, to about 480 to 500°C, then air-cooled to room temperature.

For consistency, the annealed hardness of H13 is best reported as approximately 192–229 HB.

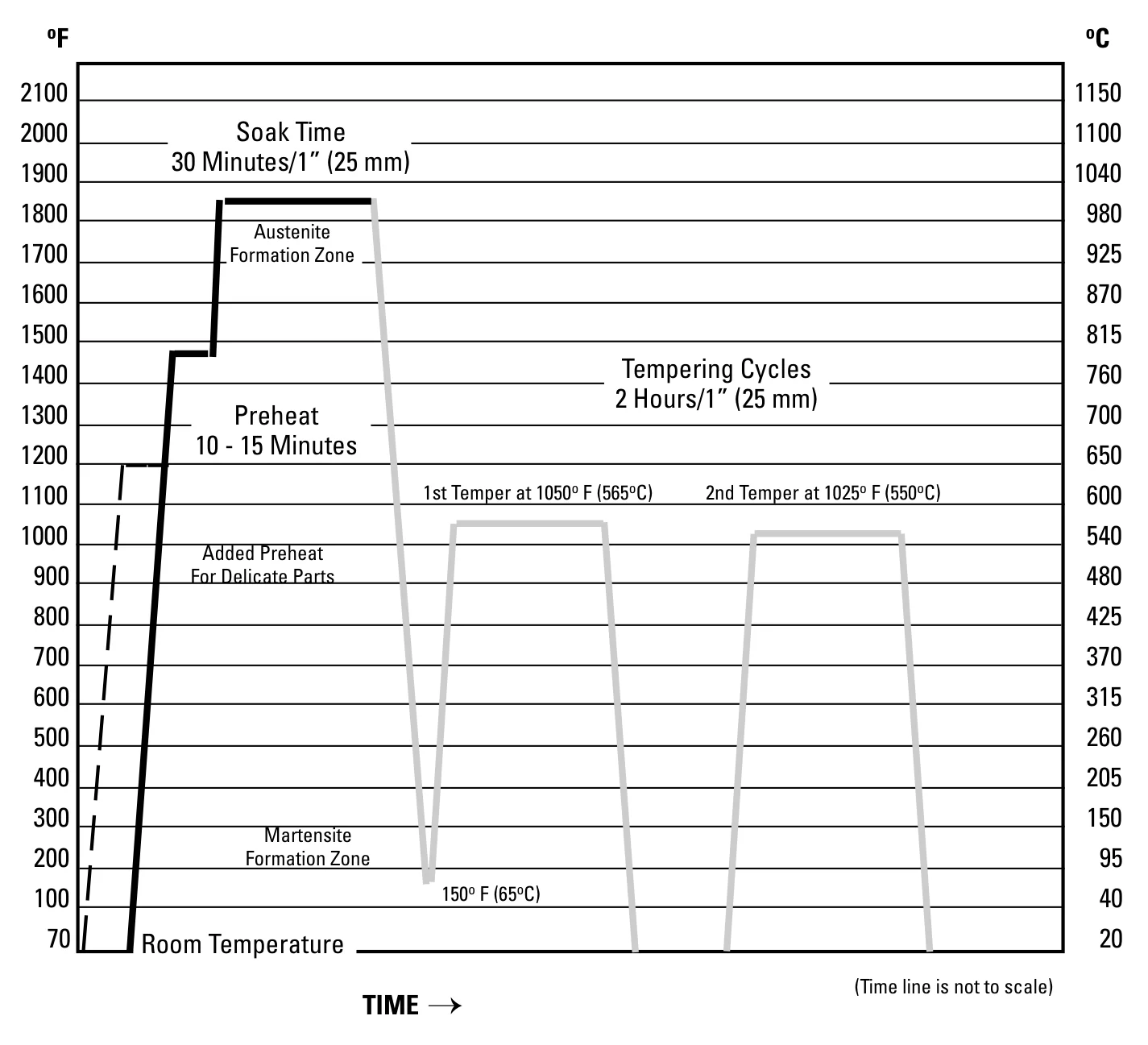

2. Preheating H13 Tool Steel

Preheating is used before hardening to reduce thermal shock and improve temperature uniformity through the section. This becomes more important as the tool becomes larger or more complex.

A typical preheating range is 790 to 815°C (1450 to 1500°F). For delicate parts or more complex sections, an initial preheat of around 704 to 760°C (1300 to 1400°F) may be used. The part should remain at preheat until the temperature is equalized throughout the whole section.

3. Austenitizing and Hardening H13 Tool Steel

After preheating, H13 is raised to the hardening range of 995 to 1025°C (1825 to 1875°F). In many standard industrial cycles, 1010°C (1850°F) is used as the reference hardening temperature for balanced properties.

The purpose of austenitizing is to dissolve sufficient alloy carbides into solution to achieve the required hardening response without inducing unnecessary grain growth. Soak time must be controlled. A common rule is 20 to 30 minutes plus additional time based on section thickness, or about 30 minutes per inch for sections over 1 inch thick.

If the hardening temperature is too low or the soak is too short, H13 may not reach full hardness. If the temperature is too high, toughness can drop.

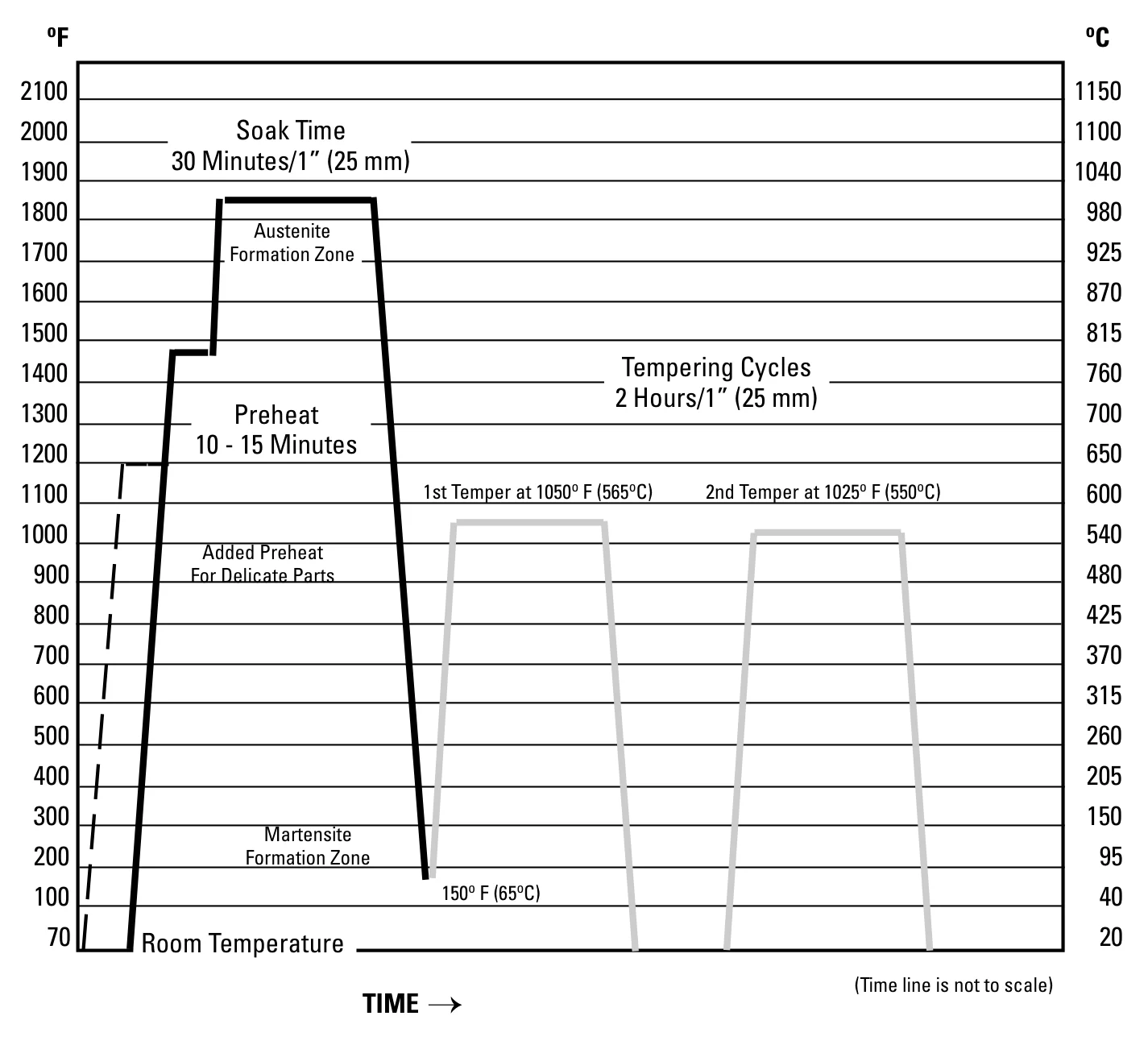

4. Quenching H13 Tool Steel

H13 is a deep-hardening steel, so still-air or high-pressure gas quenching is standard in many industrial heat-treatment routes. Vacuum-furnace gas quenching is widely used because it provides cleaner surfaces and tighter control. For very large sections, an interrupted oil quench may be used, though it carries a higher risk of distortion. H13 should not be water quenched.

H13 should not be quenched and then left to cool fully to room temperature before tempering. The quench is usually interrupted when the steel reaches about 50 to 66°C (125 to 150°F), and the part is then transferred immediately to tempering. This is one of the most important controls for reducing delayed quench cracking.

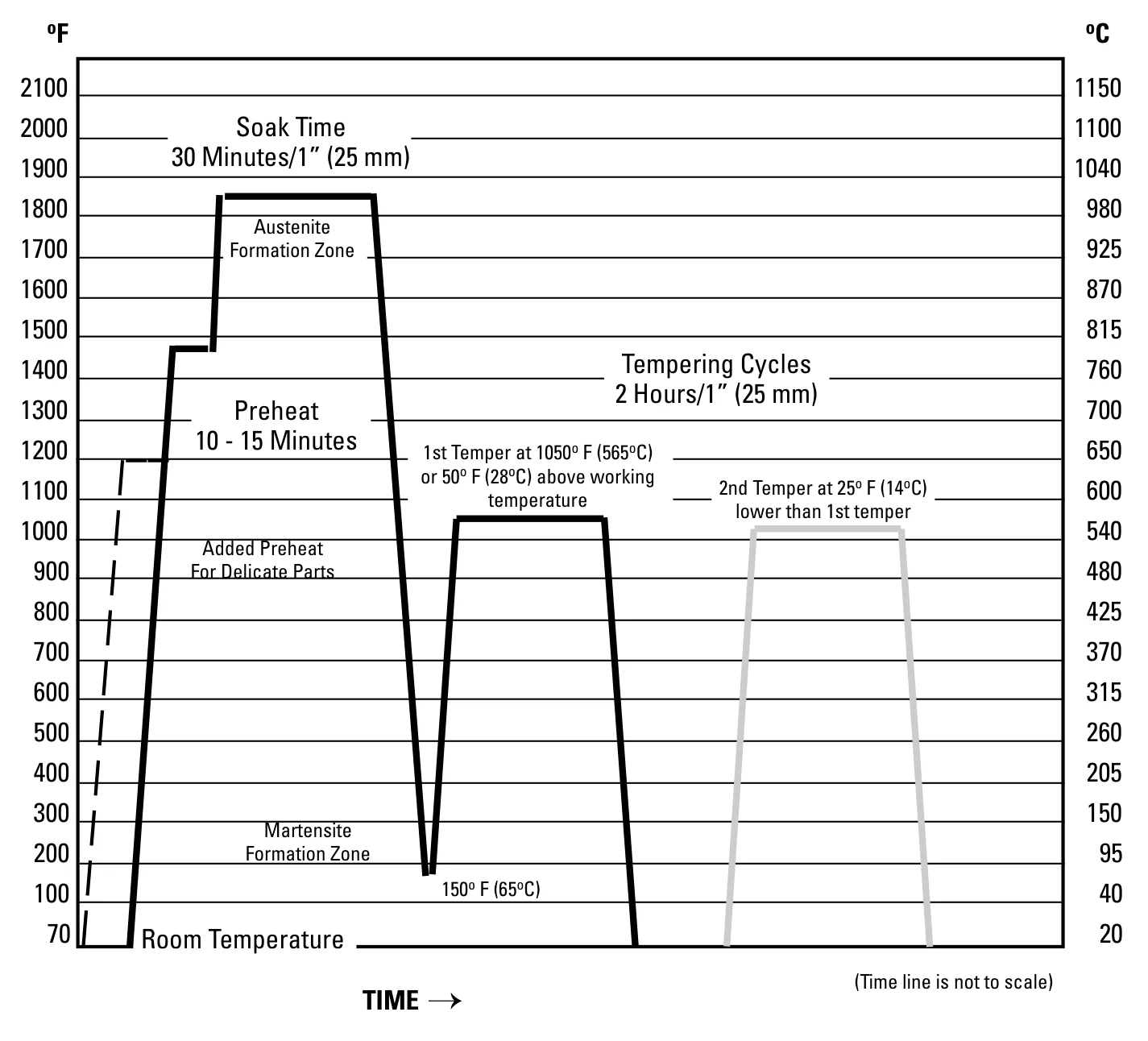

5. Tempering H13 Tool Steel

Tempering turns brittle as-quenched H13 into a usable hot-work tool steel. Double tempering is standard practice, and a third temper may be used in some cases. A practical guideline is 2 hours per inch of the thinnest cross-section, with a minimum of 2 hours per cycle. The part should cool back to room temperature between tempers.

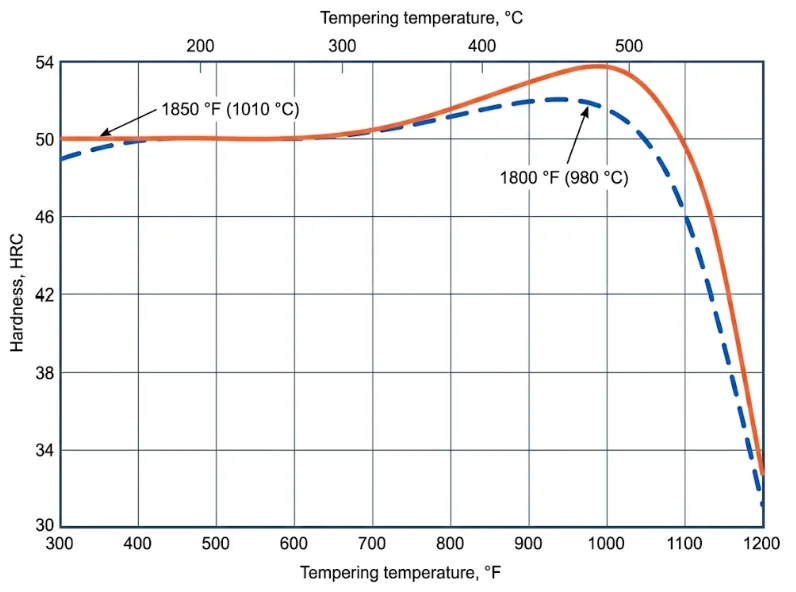

The normal tempering range is best kept between 510 and 620°C (950 and 1150°F). The selected tempering temperature should be based on the application, the required hardness, and the tool’s service temperature. For H13, the highest possible hardness is rarely the best final condition.

What Hardness Can H13 Reach After Heat Treatment?

The hardness of H13 changes clearly through the heat treatment cycle, so the cleanest way to present it is by condition.

Recommended H13 Heat Treatment and Hardness by Application

The final heat treatment of H13 should be selected based on the application, as die-casting dies, forging dies, extrusion tooling, and plastic molds fail in different ways. Some applications are limited mainly by wear, while others are limited by impact shock or thermal fatigue.

For standard die-casting tooling, 44 to 48 HRC is a strong general working range. For high-shock applications, especially hammer forging or tools subjected to severe impact, a lower range, such as 40 to 44 HRC, is often safer because cracking becomes the dominant risk. General hot-forging dies are commonly used at 38 to 45 HRC, depending on section size, severity, and service conditions.

If wear resistance must be increased further without sacrificing core toughness, H13 can be nitrided after proper tempering. In that case, the key point is not simply the high surface number. The key point is that the steel can keep a tough, stable core while gaining a much harder surface layer.

Common H13 Heat Treatment Problems and Causes

This section is more useful when organized by failure mode rather than by long theoretical explanation.

Quench Cracking

Quench cracking is one of the most serious failures in H13 heat treatment. The most common practical causes are delayed tempering, excessive hardening temperature, overly severe quenching, and poor part geometry with sharp corners or abrupt section changes. The strictest practical rule remains simple: after interrupted quenching, H13 should be tempered immediately.

Distortion and Dimensional Instability

Distortion usually comes from uneven heating, uneven cooling, or residual machining stress. Large or poorly supported parts are especially vulnerable. This is why stress relief before hardening and good support during heating are part of process control, not an optional detail.

Surface Decarburization

If H13 is heated in an oxidizing atmosphere, the surface can lose carbon and fail to reach full hardness. The result is a soft surface with weaker wear resistance and poorer fatigue performance. This is why vacuum, controlled atmosphere, or equivalent surface protection should be part of good H13 heat treatment practice.

Low Hardness and Soft Spots

If H13 does not reach the expected hardness, the usual causes are underheating, insufficient soak, or slack quenching in very large sections. In heavy sections, the core may cool too slowly, partially transforming to bainite rather than martensite, thereby reducing the hardness response.

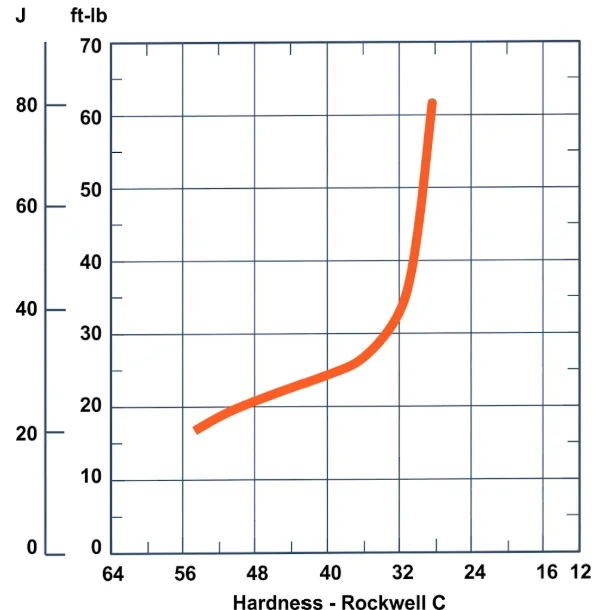

Low Toughness and Embrittlement

H13 is valued for combining heat resistance with good toughness, but that balance still depends on proper tempering and a proper quench response. The key takeaway here does not need to be overcomplicated: final tempering practice must be selected to support both hardness and toughness, especially in hot-work service, where stability matters as much as strength.

Grinding Cracks After Heat Treatment

Some failures blamed on heat treatment are actually introduced during finish grinding. Heavy cuts, the wrong wheel, or poor coolant practices can locally overheat the surface, creating a brittle layer that cracks in service.

Heat Treatment Considerations for Large H13 Blocks and Dies

Large H13 sections should not be treated as scaled-up small parts. Once the section becomes very heavy, heat transfer through the core becomes the limiting factor. Sections above about 305 mm (12 inches) may no longer respond adequately to standard air cooling, and that point should remain because it reflects a real industrial limitation.

For large H13 blocks, the main issues are slower core cooling, lower core hardness, higher distortion risk, and greater sensitivity to quench strategy. Slow cooling in the core may produce bainite instead of martensite and may also promote grain-boundary carbide precipitation, which lowers toughness. This is why large-section H13 may require interrupted oil quenching, hot salt methods, or high-pressure gas quenching rather than simple still-air treatment.

Large H13 blocks require tighter control of heating, quenching, and machining sequence. In many cases, rough machining before hardening is more realistic than finishing all details first and expecting minimal distortion afterward.

H13 Tool Steel Heat Treatment Chart
